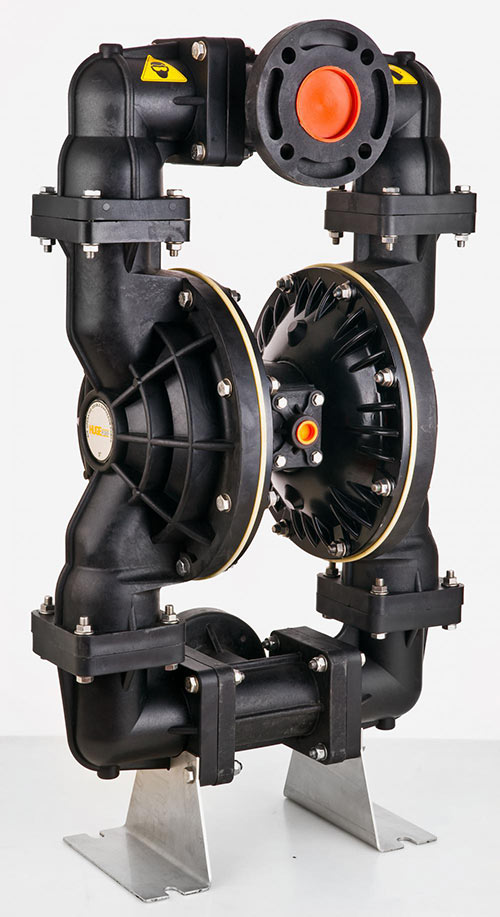

HP30 Plastic Body AODD Pumps Technical Data
Max. Capacity : 890 lpm
Intake/Discharge Size : 3" (inch)
Fluid Discharge Pressure : 7 bar
Main Body : Polypropylene Black, PVDF
Diaphragms : Santoprene, Neoprene, Buna-N, EPDM, PTFE, Viton
Balls : Santoprene, Neoprene, Buna-N, EPDM, PTFE, Viton
Ball Seats : Santoprene, Neoprene, Buna-N, EPDM, PTFE, Viton
Air Inlet Size : 3/4" (inch)
Solids - Handling : 8mm
Suction Depth : 6mm
Operating Pressure Max : 7 bar
AREAS OF USAGE:
1-CHEMICAL INDUSTRY: For transfer acids, alkalis, solvents, alcohols
2-FOOD INDUSTRY: Transferring milk, ayran, cream, mayonnaise, ketchup and similar hygienic fluids
3-REFINING INDUSTRY: For using as dosage, circulation pump, filter press pump
4-SHIPPING INDUSTRY : Transferring bilge, sludge and chemicals
5-TEXTILE INDUSTRY: Transferring textile chemicals
6-COSMETİC AND PHARMACEUTICAL INDUSTRY: For transfer cream, shampoo, gel and other chemicals
7-PACKAGING INDUSTRY: Transferring for glues, resins, paints, varnishes, compounds
ADVANTAGES:
1-Corrosion-resistant
2-Pumps can use for transferring fluids which contains particles
3-Maintenance is easy and costs are low
4-Flow rate can adjust with change inlet air pressure.
5-Pumps can work without fluids.
6-Suction depth is 6 meter.
PERFORMANCE CURVE:

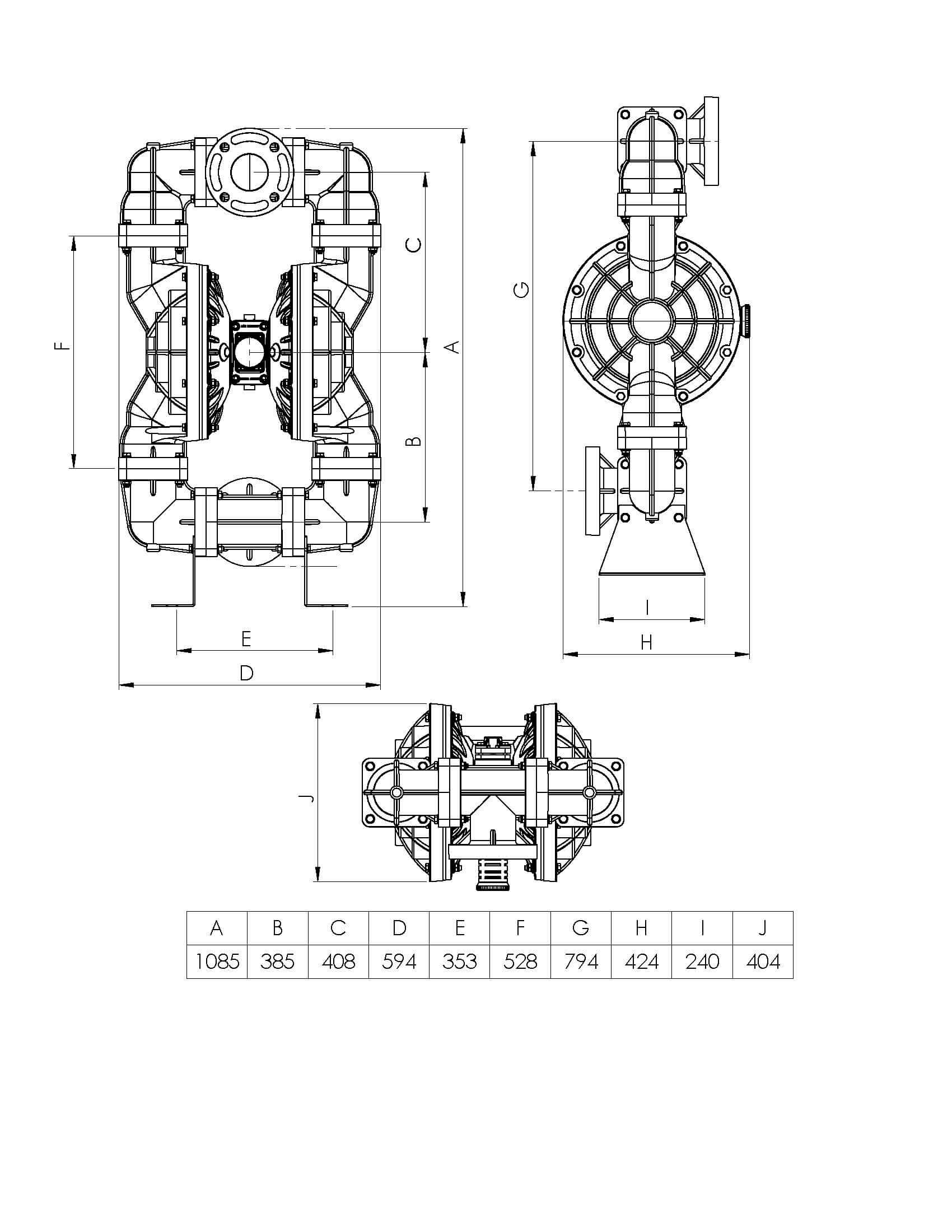

EXTERNAL DIMENSIONS OF THE PUMP:
